Linking Crestron Touchpanels

The Centro application can run on a variety of 3rd party touchpanels with easy installation and configuration.

The example below is for Crestron TSS and TSW Panels

The following models are supported:

  • TSS-470
  • TSS-770
  • TSW-770
  • TSS-1070
  • TSW-1070

Hardware Setup​

Login to the panel browser interface via the panels IP Address.

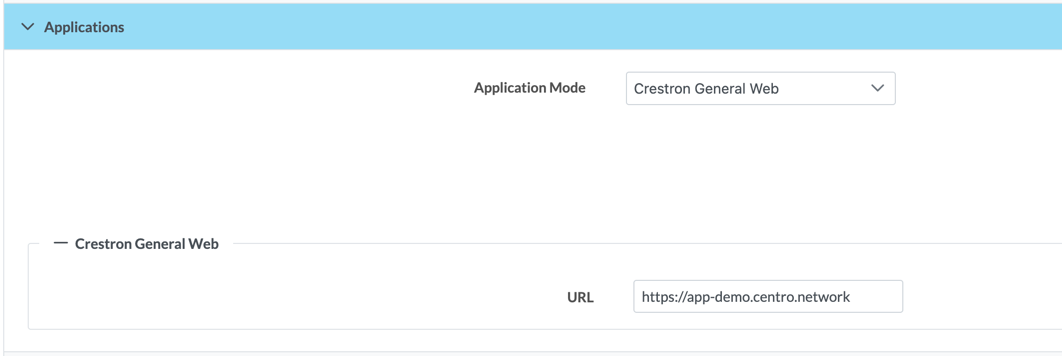

The panel should be setup to the Crestron General web Mode and the URL below.


The touchpanel will reboot following a change to application or URL

Centro App Linking​

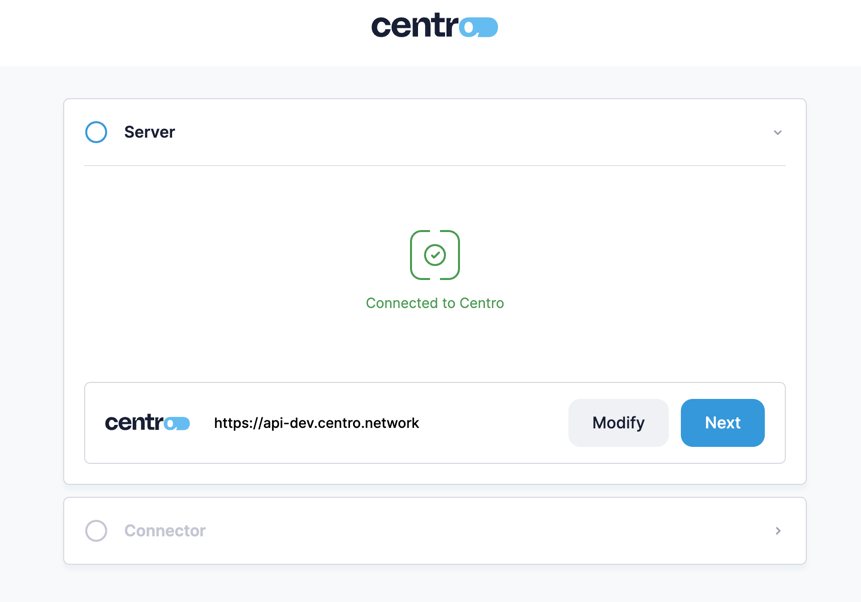

On first load the screen will show this initial screen confirming connection to the centro server and allowing you to update the domain if you are using a custom server.


Press next to continue.

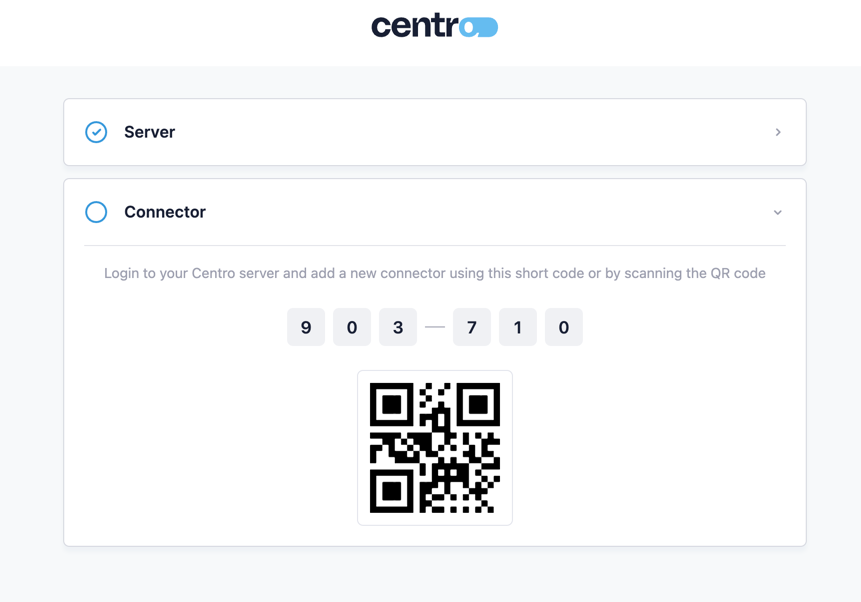

The webapp wil display a QR code and shortcode which is used to identify the touchpanel in the centro Admin.

NB: Click below to see the Admin pages related to this panel linking flow.

Go to the admin panel linking page
